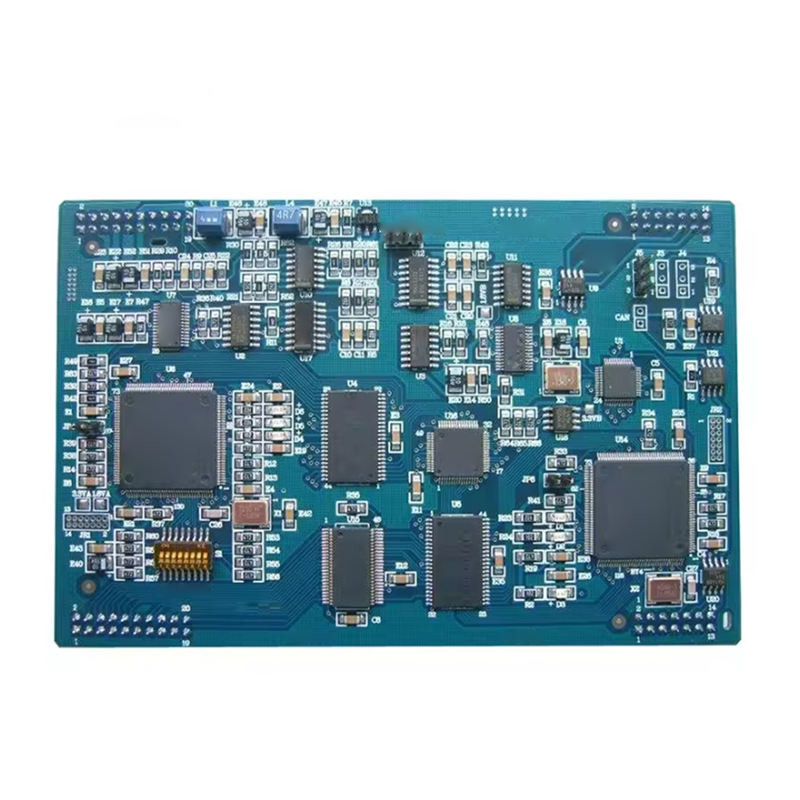

Electronics Fabrication Pcb Population Service Customized Circuit Board Smt Pcba Assembly Factory
-
Highlight
High Technology Pcb Assembly Services
,Low Cost Pcb Assembly Services
,Low Cost PCB Board Assembly
-
Turnkey PCBAPCB+components Sourcing+assembly+package
-
Assembly DetailsSMT And Thru-hole, ISO Lines
-
Lead TimePrototype: 15 Work Days. Mass Order: 20~25 Work Days
-
Testing On ProductsFlying Probe Test, X-ray Inspection, AOI Test, Functional Test
-
QuantityMin Quantity: 1000pcs. Prototype, Small Order, Mass Order, All OK
-
Files We NeedAssembly: Pick-N-Place File
-
Place of OriginCHINA
-
Brand NameXHT
-
CertificationISO、IATF16949、RoSH
-
Model NumberXHT-Printed Circuit Board Assembly-7
-
Minimum Order QuantityLow MOQ
-
Packaging DetailsCarton with foam bag
-
Delivery Time5-8 work days
-
Payment TermsT/T, Western Union, MoneyGram
-
Supply Ability600000＋ PCS/mouth
Electronics Fabrication Pcb Population Service Customized Circuit Board Smt Pcba Assembly Factory
Electronics Fabrication PCB Population Service Customized Circuit Board Smt Pcba Assembly
What is PCB Population Service ?
PCB population service refers to the professional service provided by electronics manufacturing companies to populate printed circuit boards with electronic components. This service typically includes the assembly of components onto the PCB using automated pick-and-place machines, soldering equipment, and quality control processes to ensure the accurate placement and soldering of components.
PCB population service providers often offer surface mount technology (SMT) and through-hole technology (THT) assembly, as well as the capability to handle multi-layer PCBs. Additionally, these services may include the sourcing of components, quality inspection, and testing to ensure the functionality and reliability of the assembled PCBs. By outsourcing PCB population to a specialized service provider, companies can benefit from expertise, efficiency, and cost-effectiveness in the assembly process.
SMT PCBA Assembly
SMT PCBA assembly refers to the process of assembling printed circuit board assemblies (PCBAs) using surface mount technology (SMT). This involves populating the PCB with electronic components that are mounted directly onto the surface of the board, as opposed to through-hole components that are inserted into pre-drilled holes.
During SMT PCBA assembly, components are placed onto the PCB using automated pick-and-place machines, solder paste is applied to the board, and then the assembly is subjected to a reflow soldering process to permanently attach the components to the board. SMT PCBA assembly is widely used in modern electronics manufacturing due to its efficiency, high component density, and suitability for miniaturized designs.
Our Advantages:
1. Program and functional test and package by Free.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% functional test.
3. Professional service: PCB/FPC/Aluminium Making, SMT, DIP, Component Sourcing, OEM with 21 years experience.
4. Certifications: UL, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001,ISO13485,TS16949
What XHT provide?
1. 7/24 Sales and technical support
2. Felxible payment methods and negotiable payment terms
3. Both samples and bulk orders are supported
4. More than 10 years overseas export experience, flexible handling of transportation and customs clearance issues
FAQ
| Q: How long is the shelf life of the PCB board and how should it be stored? XHT: 25℃ / 60%RH is recommended when the PCB is stored. The plate itself has no shelf life, but if it exceeds three months, it needs to be baked to remove moisture and stress, and it should be used immediately after baking. It is recommended that the pieces should be loaded within 6 months of storage to reduce the phenomenon of rejection and explosion. |
| Q: How about the shipping cost? XHT: The Shipping cost depends on the destination, the weight and volume of the goods as well as the quotation of DHL/FEDEX/ freight forwarder at that time. You can inform us of the transportation way you need before placing an order. |
| Q: What are the types of solder mask? XHT: There are traditional epoxy resin IR baking type, UV curing type, Liquid Photo Imageable Solder Mask and Dry film solder mask. Currently, the liquid solder mask is the main type. |
| Q: Why choose us? XHT: Professional and experienced R&D team. Advanced production equipment, scientific and reasonable process flow. Reliable and strict quality control system. We test all our products before shipment to make sure everything is in perfect condition. |
Our products are sold all over the world, you can rest assured.
