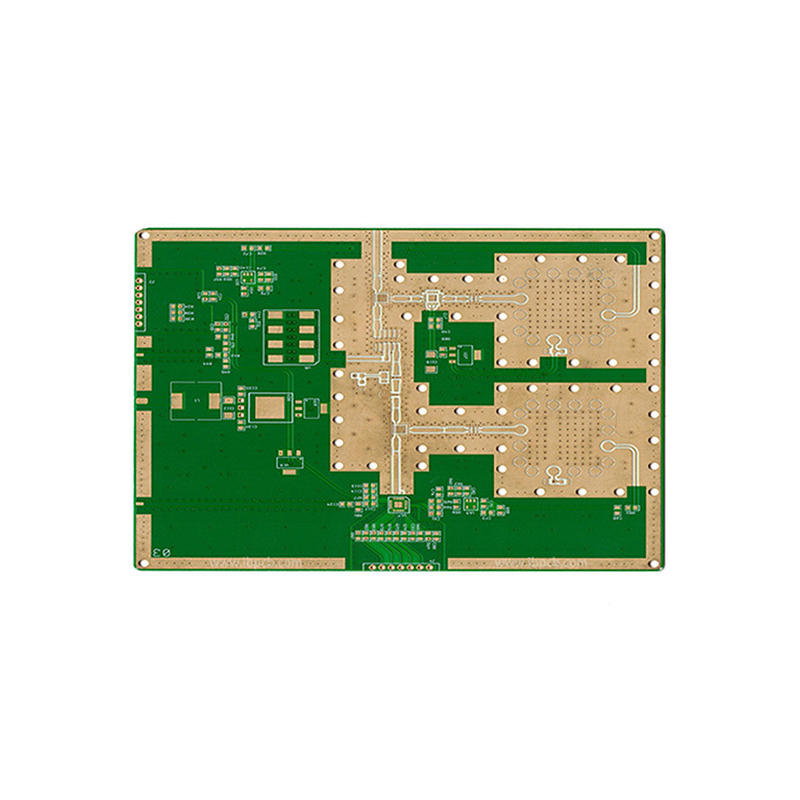

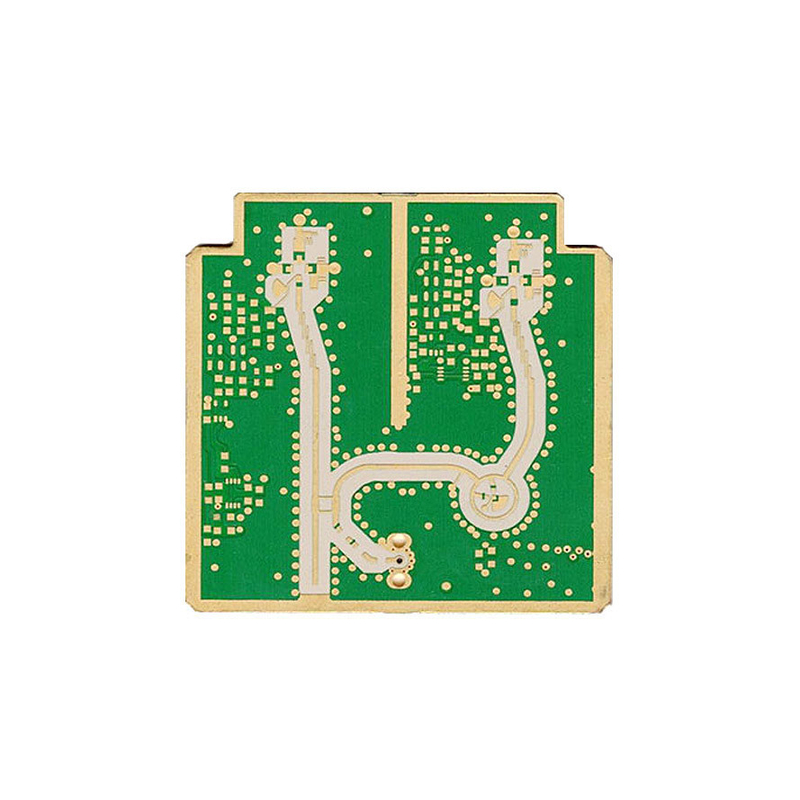

Green Solder Mask High Frequency Circuit Board Multi- Layer Prototype PCB One Stop Service

Green Solder Mask High Frequency Circuit Board Multi- Layer Prototype PCB One Stop Service

Product Description:

Our state-of-the-art PCB manufacturing process ensures that our products meet and exceed industry standards. Our lead time for prototypes is only 3-5 days, and for mass production, it is 7-10 days.

We are capable of producing PCBs with a maximum panel size of 600x1200mm, making it suitable for various applications. Whether you need a single-layer PCB or a 20-layer PCB, we can deliver the perfect solution for your needs.

Our PCBs can accommodate a minimum hole size of 0.2mm, making them perfect for high-frequency applications. We understand that every customer has unique requirements, which is why we offer customization options to meet your specific needs.

You can choose from a variety of solder mask colors, including green, blue, black, red, yellow, and white. This allows you to personalize your PCB to match your brand or application needs.

Our High Frequency PCB Manufacturing service is designed to provide you with the highest quality PCBs, no matter the complexity of your project. Our team of experts is committed to ensuring that your PCBs are delivered on time and within your budget.

Features:

• Product Name: High Frequency PCB Manufacturing
• Impedance Control: Yes
• Minimum Trace/Space: 4/4mil
• Layer Count: 2-32 Layers
• Minimum Hole Size: 0.2mm
• Quality Standard: IPC Class 2, Class 3
• Designed for High-Speed PCB, Microwave PCB, and RF PCB (Radio Frequency PCB) applications

Technical Parameters:

Our High-Frequency PCB Manufacturing product is suitable for microwave PCB, RF PCB (Radio Frequency PCB), and High-Frequency Electronics.

Applications:

Our XHT-HFPCB is designed for applications that require high-frequency signal transmission. It is suitable for a wide range of industries such as telecommunications, aerospace, medical equipment, and military equipment. Our product is designed to meet the impedance control requirements and has a minimum trace/space of 4/4mil. The silkscreen color options are white, black, and yellow, providing customers with a choice to match their design needs.

Our XHT-HFPCB can be used in various scenarios. It is commonly used in products that require wireless communication, such as mobile phones, wireless routers, and remote control systems. It is also suitable for high-frequency electronic devices such as radio and television equipment, GPS, and satellite communication equipment. Our product is capable of meeting IPC Class 2 and Class 3 quality standard requirements, ensuring that it meets the high demands of the industry.

Our XHT-HFPCB has a lead time of 3-5 days for prototype and 7-10 days for mass production. This fast turnaround time allows our customers to quickly bring their products to market. We pride ourselves on providing excellent customer service and technical support throughout the entire production process. Our team of experts is always available to assist our customers with any questions they may have.

Customization:

Our High-Frequency PCB has been certified with ISO, IATF16949, RoSH, ensuring the quality of our product. We offer Low MOQ with a supply ability of up to 100000pcs/day, ensuring a fast and efficient delivery time of 5-8 days. We accept payment terms of T/T, Western Union, and MoneyGram, making the transaction process easy and convenient for our customers.

Support and Services:

Our High Frequency PCB Manufacturing product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced engineers and technicians are available to assist with any technical inquiries or issues that may arise during the manufacturing process or the use of our product.

We offer a range of services, including:

• Design consultation to ensure the design meets the high frequency requirements
• Material selection guidance to ensure the best performance for the application
• Prototype fabrication to validate the design and performance
• Mass production with high-quality control to ensure consistency and reliability
• Testing and inspection services to verify the functionality and performance of the product
• Customized solutions to meet specific customer requirements

Our commitment to quality and customer satisfaction extends beyond the delivery of our product. We offer ongoing technical support and training to ensure our customers have the knowledge and resources to fully utilize our product and maximize its potential.
