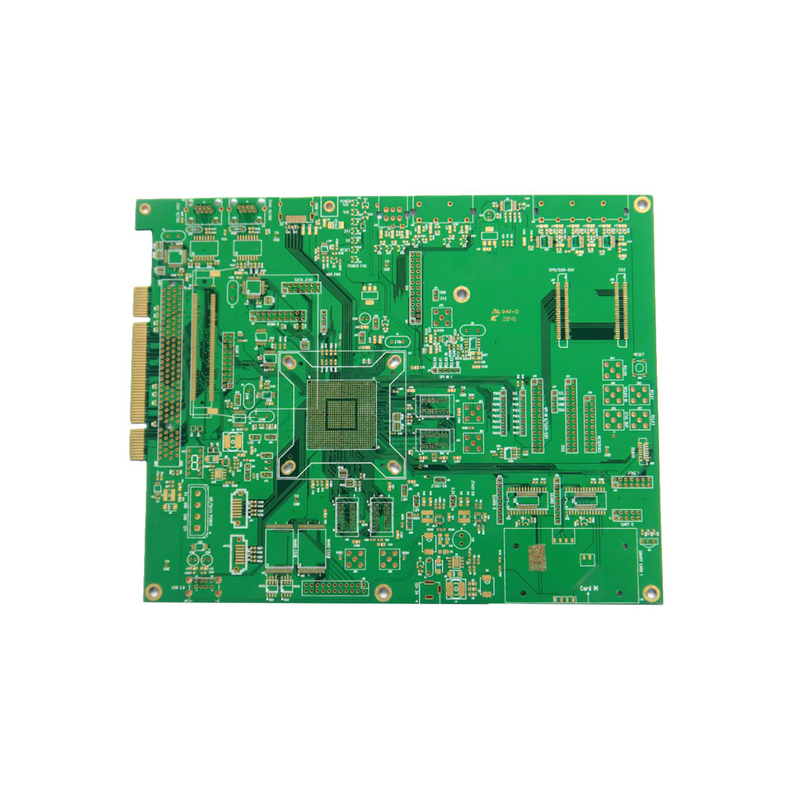

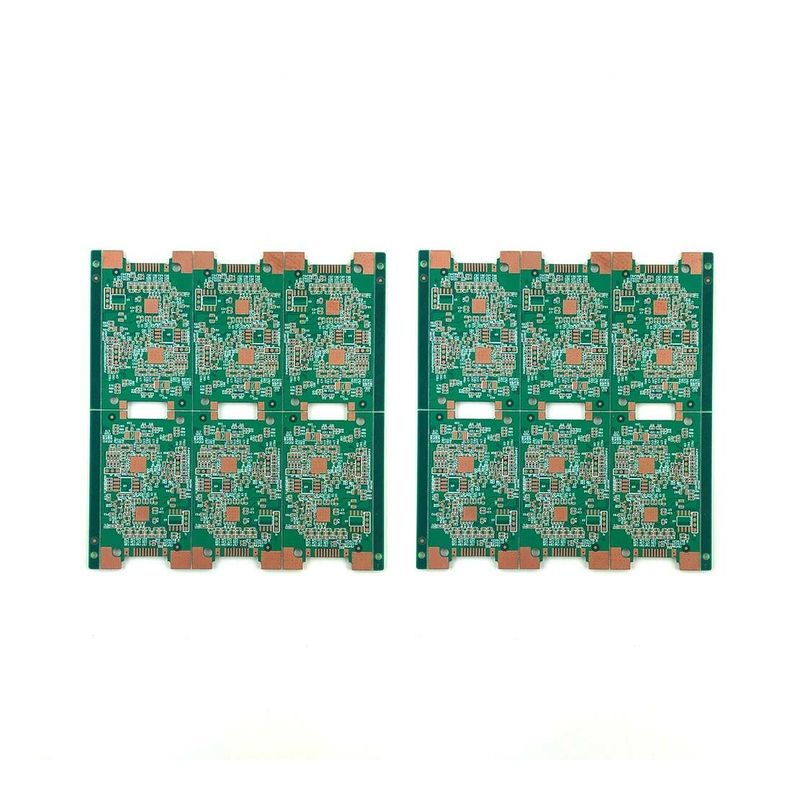

Economic PC Board Fabrication PCB Manufacturing Printed circuit Board leading manufacturer

Economic PC Board Fabrication PCB Manufacturing Printed Circuit Board Leading Manufacturer

 PCB structures:

The printed circuit board (PCB) structure can be divided into the following three types

Single-Layer PCB: Only one side of the circuit board has copper foil conductors, and the other side has no copper foil conductors at all. The circuits of early electronic products were simple, only one side was needed for connection and conduction, and parts could be placed on the other side without copper foil.

Double-Layer PCB: There are copper foil conductors on both sides of the circuit board, and the paths on the front (Top layer) and the back (Bottom layer) can be connected to each other through vias. Since both sides can be wired, the usable area is twice that of a single panel, which is more suitable for products with complex circuits. The design is to place the part on the front, and the back is the welding surface of the part foot.

Multi-Layer PCB: Multi-Layer PCB is made of multiple etched double-sided boards, an insulating layer (Prepreg) is stacked between the boards, and copper foil is laid on both sides of the outermost layer and then pressed together. Since multiple double-sided laminates are used, the number of layers is usually an even number. The copper foil layer that is pressed inside can be a conduction layer, a signal layer, a power layer or a ground layer. The multi-layer board can theoretically reach more than 50 layers, but the practical application surface is currently up to about 30 layers.


Several types of PCB

Rigid PCB : These boards are made of fabricated and sturdy materials that are not easily bent or twisted. They are very complex and powerful, with powerful circuits around them. They are easy to handle during repair and maintenance because they are strong and can withstand strong handling. In addition, the components marked on the board are generally clear, and the signal paths are organized.

Flexible Printed Circuit Boards: As the name suggests, these boards are very flexible and are made of the same flexible materials. Flexible PCB  can be single-sided, double-sided and multi-layered. This design facilitates easy assembly of parts in small or fragile equipment. The flexibility also helps save a lot of space while making the device lighter. These printed PCB are best suited for temperature sensitive operating conditions or industrial and related equipment.

Rigid-Flex PCB : This is a combination of rigid and flexible PCB Prototype service. These types of PCB Prototype service use multi-layer flex circuits connected to two or more rigid boards. They are lightweight and compact to save space, making them ideal for medical and military applications.

High Frequency PCB : This type of board is used for electrical appliances in the frequency range of 500MHz-2GHz. Most frequency sensitive applications, such as microwave and communication systems, use high frequency circuit boards.

Aluminum-Based PCB : These have aluminum supports for thermal regulation, high rigidity, and low thermal expansion, and are often used in high-power appliances such as LEDs and power supplies.

Printed PCB Prototype circuit boards have changed and simplified the use of many appliances, from desktop computers to high-end medical equipment, circuit boards are now everywhere

PCB Prototype Service Capacities and Technical Specification


FAQ
